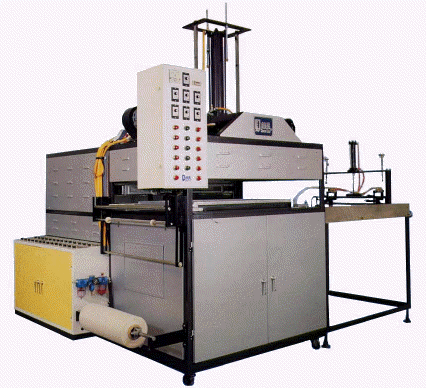

VF-200A Full Automatic Vacuum Thermo Forming























UTILITY

bulletMass production for versatile embossed printing over-lay ceiling, wall panel and door, in addition, PVC, PS fruits tray, food container and all blister package can be made.

SPECIFICATIONS

Film Width Max. Forming

610mm(24")
Max. Forming Area W×L 570x1000mm
Max. 150mm
Vacuum pump 3HP
Air Compressor 3HP
Heater 18kw
Max. Machine Size 2560(L)x3170(W)x1850(H)mm
