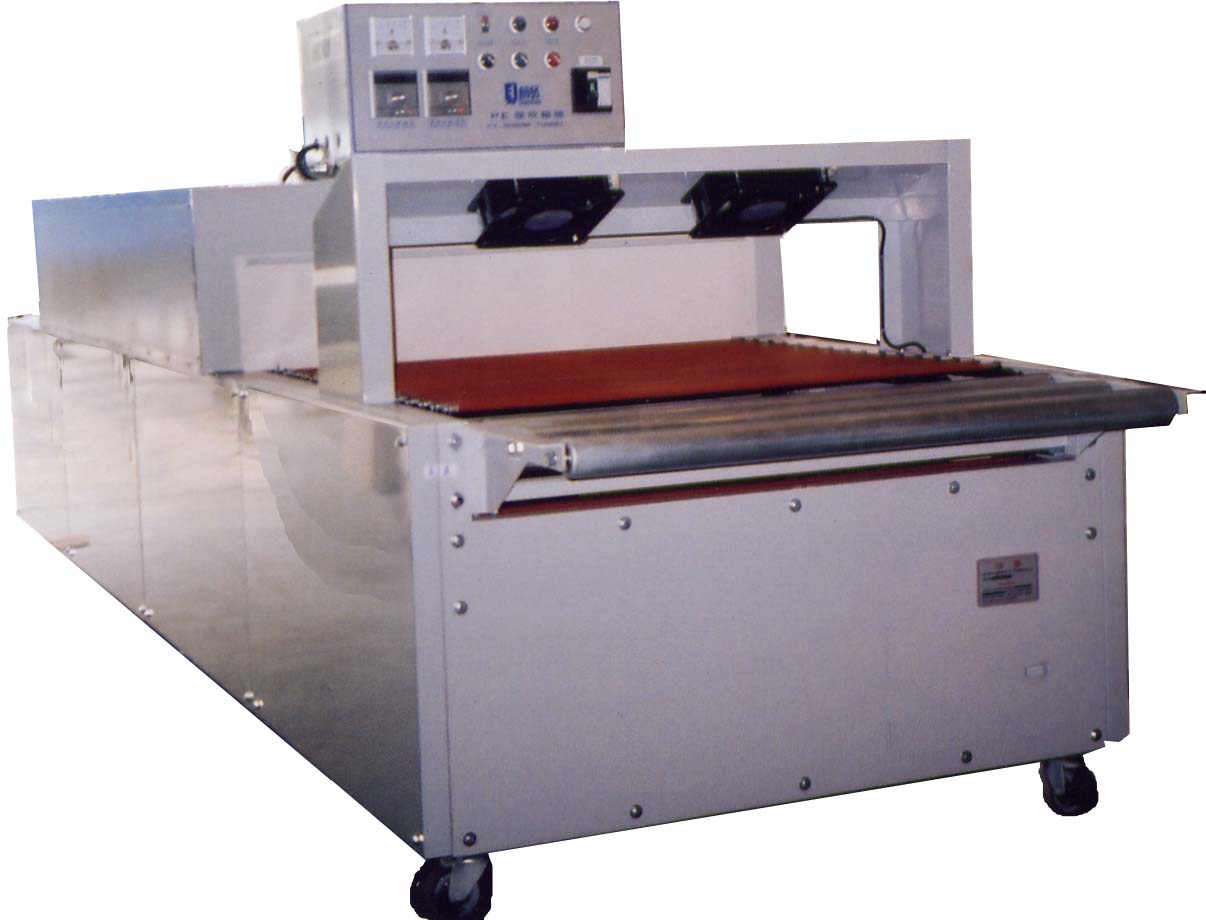

Automatic Shrinking Machine





















FEATURES

bulletTo transfer the articles automatically between the PE shrink film curtains from the conveyor to come in contact with the impulse sealer's switch, U-Type sealing bars come down automatically. Then the articles come into PE shrink tunnel. Depending on the articles, up to 3 packages per minute can be carried out. Either sleeve packaging can be achieved.

APPLICATIONS

bulletSuitable for door, big-sized & weighted shrink packing.

SPECIFICATIONS

Model

140/20STC

Power 220V,3Ø,50/60Hz
Heater 50kw
Shrink Size 1400x200m/m
Machine Dimension 3900x1500x1135m/m
